2025 Newest High Speed 2 in 1 Function Laser Marking Cleaning Machine
1.Products Introduction
Multi-function 2-in-1 Cleaning and Marking Laser Machine" integrates these two functions into a single device. Users can simply switch the processing mode via software to complete the cleaning process first, followed by the marking process using the same machine.
Laser Cleaning: Utilizes a high-energy laser beam to irradiate the workpiece surface, causing contaminants (such as rust, paint, oil stains, coatings) to instantly vaporize or be stripped away without damaging the substrate. This can be seen as a "subtractive" process.
Laser Marking: Uses a laser to create permanent marks on the workpiece surface, such as logos, serial numbers, QR codes, dates, etc. This can be seen as "surface modification" or "light engraving."
2.Products Application
Mold Industry: Cleaning release agents, oil, and rust from molds -> Marking model numbers and identification on molds.
Automotive Components: Cleaning dirt from engine components, brake discs -> Marking traceability QR codes and part numbers.
Aerospace: Removing coatings and oxide layers from aluminum alloy, titanium alloy components -> Marking high-precision, high-temperature resistant permanent identifiers.
Electrical Engineering: Cleaning oxidation from transformer terminals and busbars to improve conductivity -> Marking equipment information and safety labels.
Rubber Products: Cleaning tire molds -> Marking DOT codes and other information on tires.
Heritage Restoration & Building Cleaning: Precisely cleaning stains from stone, metal surfaces (this scenario often uses the cleaning function only).
2 in 1 Laser Marking and cleaing machine
3.Main Advantages
Versatile Machine, Saves Cost and Space: Eliminates the need to purchase two separate pieces of equipment, saving on procurement costs, floor space, and maintenance costs.
Improves Production Efficiency: Integrates the cleaning and marking processes into a single workstation, reducing the time required for transporting and repositioning workpieces between different machines, significantly improving production throughput.
Simple Operation: A unified software platform allows operators to master both processes by learning just one system.
High Flexibility: Particularly suited for processes that require cleaning before marking. For example:
Cleaning a defined area on rusty or coated metal to create a clean spot, then marking on that specific area.
Removing old marks from reworked parts, then applying new marks.
4. Products Parameter
| Laser Property | Laser Type | 2-in-1 laser cleaning and marking machine |
| Laser Power | 200w | |
| Laser Wavelength | 1064nm | |
| Maximum Pulse Energy | 0.7mj-1.1m | |
| Laser Adjustment Range | 0-1000kHZ | |
| Laser Lifetime | 100,000 hours | |
| Marking Property | Marking Method | High-precision two-dimensional scanning method |
| Marking Speed | 10-7000mm/s | |
| Operating Interface | 8-inch touchscreen | |
| Marking Line Type | Matrix and vector display integrated | |
| Marking Range | 100mmx100mm(Standard configuration) | |
| Positioning Method | Red light positioning | |
| Interface Language & Input Method | Simplified Chinese, Traditional Chinese, English, Korean, Japanese, German, Arabic, Spanish, Portuguese, Italian, etc. | |
| Supported Marking Types | Text, QR codes, geometric shapes, vector graphics, bitmaps, etc., can be combined and edited | |
| Supported Import Formats | png,jpg,bmp;dxf,plt,svg;Bitmap files: PNG, JPG, BMP; Vector files: DXF, PLT, SVG | |
| Barcode/QR Code | 1D Barcodes: EAN, UPC, PDF417, and various CODE labels | |
| 2D Barcodes: DataMatrix, QR Code | ||
| Supported Marking Materials | Materials: Iron, aluminum, copper, stainless steel, PVC/PP/PB/ABS/high-polymer plastics, epoxy resin, rubber, leather, lacquered wood, laminated cardboard/corrugated cardboard, photovoltaic panels, circuit boards, etc. | |
| Electrical appliance attributes | Cooling System | Built-in air cooling |
| Power Supply Voltage | 90v-240V | |
| Maximum Power Consumption | 120W | |
| Overall machine attributes | Housing Material | Aluminum |
| Net Machine Weight | 14KG | |
| Net weight of entire unit: 14 kg | ||
| Handheld Head Specifications | 260*65*71mm | |
| External Dimensions | 440*340*176mm |
5. Company Profile

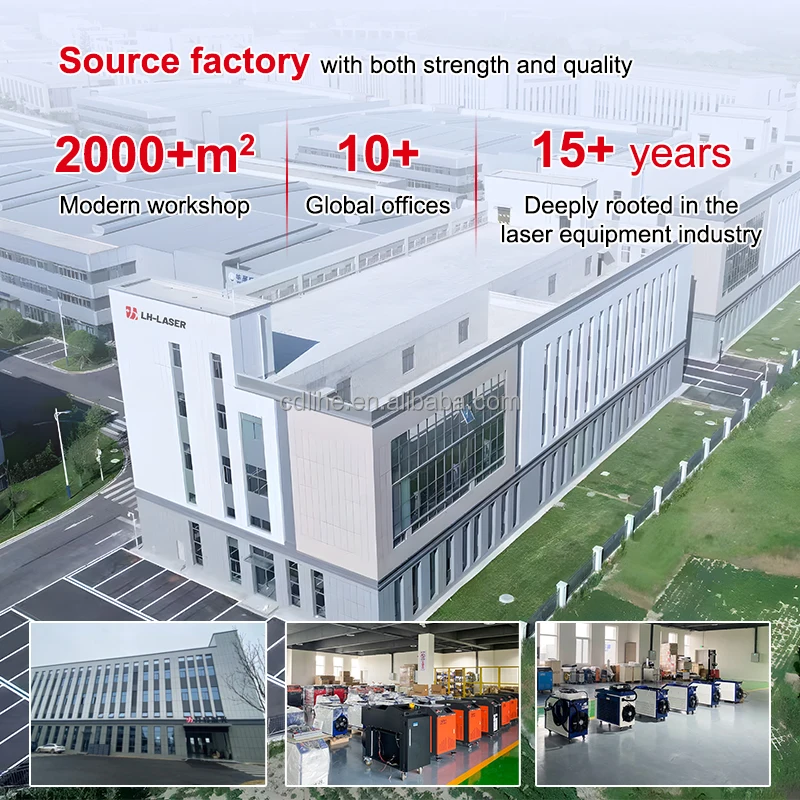

Chengdu Lihe Laser Technology Co., Ltd. Established in May 2010, is a high-tech enterprise specializing in the R&D, production, sales, and service of high-power laser equipment. With over two decades of deep expertise in China's laser technology sector, the company offers a comprehensive product portfolio including handheld laser welders, handheld laser cleaners, gantry welding machines, laser cutting machines, robotic laser automatic welding systems, laser marking machines, laser tube cutters, and other customized laser automation equipment. Our products has exported to over 80 countries and regions worldwide,We are looking for global agent cooperation and can provide you with commission.
