300W Trolley Type Pulsed Laser Cleaning Machine
Product Introduction
The 300W trolley type pulsed laser cleaning machine is a new generation of portable industrial surface cleaning equipment, which adopts advanced pulsed fiber laser technology and integrates high-efficiency cleaning performance with flexible mobility. Designed with a sturdy trolley structure equipped with universal pulleys, this machine breaks the limitations of traditional fixed cleaning equipment, enabling free movement in workshops, outdoor construction sites and other scenarios, meeting the needs of mobile and on-demand cleaning operations.
With a stable 300W output power, it relies on high-energy pulsed laser beams to instantly vaporize, peel off surface contaminants such as rust, paint, oil stains, oxide films and coatings without damaging the base material. It gets rid of the high pollution, high consumption and low precision drawbacks of traditional sandblasting, chemical cleaning and mechanical grinding methods, providing a green, efficient and precise integrated solution for industrial surface treatment. This equipment features simple operation, low maintenance cost and strong environmental adaptability, making it widely applicable to various industrial cleaning scenarios with high efficiency and quality requirements.
Products Parameter
|
Model |
LH-FL-T100/LH-FL-T200/LH-FL-T300 |
|
Laser Power |
100w, 200w, 300w(Power more than 500w need Air- cooled type) |
|
Laser Output power adjustment range |
10% - 100% |
|
Laser Source |
JPT/MAX/BWT |
|
Fiber Wire Length |
5m (1m inside machine case) |
|
Laser Cleaning Head Weight |
1.35KG |
|
Cleaning Mode |
Straight Line Mode,Rectangle Mode 1,Rectangle Mode 2, Circular Mode, Sine Mode, |
|
Cooling Method |
Air Cooling |
|
Voltage |
220V 1PH 50HZ/60HZ |
|
Machine Dimension |
500*330*830mm |
|
Package Dimension |
550*350*903mm |
|
Package Weight |
45KG |
300WPulsed Laser Cleaning Machine Features

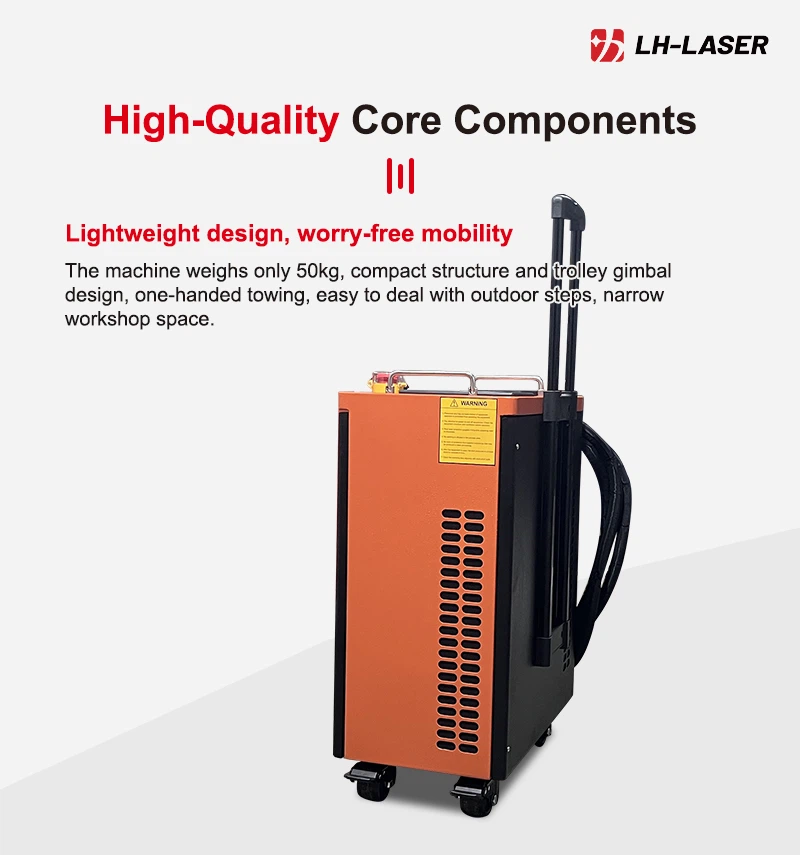

Portable Trolley Design
The equipment adopts a humanized trolley structure with durable universal pulleys and a comfortable push-pull handle, which is lightweight and easy to move. It can be quickly transferred between different workstations and construction sites without fixed installation, greatly improving the flexibility of cleaning operations and adapting to diverse on-site working conditions.
Non-contact & Substrate-friendly Cleaning
Adopting non-contact laser cleaning technology, it does not require direct contact with the surface of the workpiece, avoiding mechanical wear, deformation and secondary damage caused by traditional cleaning methods. By precisely adjusting laser parameters, it can selectively remove contaminants while completely protecting the integrity of the base material, suitable for cleaning precision parts and fragile materials.
High Efficiency & Energy Saving
Equipped with a high-performance 300W pulsed laser source, it has fast cleaning speed and large single-operation cleaning area, greatly improving work efficiency compared with traditional processes. The equipment has low energy consumption, only consumes a small amount of electric energy during operation, without additional chemical reagents, abrasives and other consumables, significantly reducing operation and maintenance costs.
Precise & Controllable Cleaning Effect
With intelligent control system and adjustable laser parameters, it can realize fixed-point, quantitative and selective cleaning. It accurately targets various stubborn contaminants, and is compatible with diverse cleaning modes to meet the treatment needs of different materials, different contaminants and different precision requirements, ensuring uniform and stable cleaning effect.
Eco-friendly & Pollution-free
The whole cleaning process does not produce waste liquid, waste gas, dust and other pollutants, complying with environmental protection standards. There is no need for subsequent pollution treatment, which fundamentally solves the environmental hazards of traditional cleaning processes and creates a safe and clean working environment.
Simple Operation & Wide Compatibility
The humanized control panel is easy to learn and operate, and operators can quickly master the equipment use without professional skills. The handheld cleaning head is lightweight and labor-saving, suitable for long-term operation, and can also be matched with automated mechanical arms to realize automatic cleaning, compatible with various metal and partial non-metal material surface treatment.
Pulsed Laser Cleaning Machine Application Fields
Metal Surface Treatment
Widely used for derusting, paint removal, oxide film removal and oil stain cleaning of various metal workpieces such as steel, aluminum alloy, copper alloy, stainless steel; applicable to surface treatment of metal parts in machinery manufacturing, hardware processing, metal structure and other industries, as well as pre-weld cleaning and post-weld oxide removal of metal workpieces.
Automobile Manufacturing & Maintenance
Applied to paint stripping, rust removal, glue removal and stain cleaning of automobile body, sheet metal parts, engine parts, wheels and other components; suitable for automobile refurbishment, parts recycling and maintenance cleaning, effectively improving the surface quality and service life of auto parts.
Shipbuilding & Marine Engineering
Used for surface derusting, paint removal and anticorrosive treatment of ship hulls, decks, cabins, marine machinery and equipment; solving the cleaning problems of large-scale marine metal structures, improving the anti-corrosion performance and service life of ships and marine facilities.
Cleaning Samples
This type pulsed laser cleaning machine effectively removes paint from metal and stainless steel surfaces, such as automotive parts. It can also be used for cleaning wood, removing graffiti, and restoring cultural relics, delivering excellent cleaning results.
