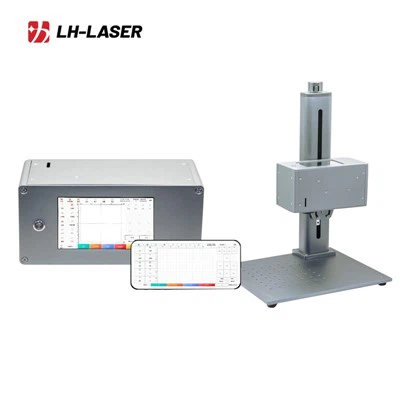

20W Desktop Integrated Fiber Laser Marking Machine
Integrated Fiber Laser Marking Machine Introduction
Our desktop integrated fiber laser marking machine is a compact, all-in-one laser marking solution designed for small businesses, workshops, laboratories, and personalized customization studios. Breaking the bulky structure of traditional laser marking equipment, it adopts a fully integrated design that integrates the laser source, scanning galvanometer, control system, cooling system and workbench into one compact body, no additional assembly required, plug and play. With high-precision marking performance, stable operation and ultra-low maintenance cost, it perfectly meets the needs of permanent marking, engraving and anti-counterfeiting tracing for various metal and partial non-metal materials.
Integrated Fiber Laser Marking Machine Parameter
| Model | LH-DM-FL-20W | ||||||
| Laser power | 20W | ||||||
| Laser adjustable range | 0-1000kHz | ||||||
| Life time | 100000 hours | ||||||
| Wavelength | 1064nm | ||||||
| Max. Pulsed energy | 0.7mJ-1.1mJ | ||||||
| Marking method | High-precision two-dimensional scanning | ||||||
| Marking speed | 10-7000mm/s | ||||||
| Marking line type | Dot matrix, vector integration | ||||||
| Marking area | 100*100mm(Standard, can be customized made) | ||||||
| Locate mode | Red light positioning | ||||||
| User Interface | 8' touch screen | ||||||
| Language | Simplified Chinese, Traditional Chinese, English, Korean, Japanese,German, Arabic, Spanish, Portuguese, Italian, etc. | ||||||
| Support marking type | Bitmap png,jpg, bmp; vector image dxf, plt, svg; file | ||||||
| Supported import formats | Text, QR code, geometric diagram, vector diagram, bitmap, etc. can be combined and edited | ||||||
| Barcode / QR code | One-dimensional code: EAN code, UPC code,PDF417 code and various CODE code marking codes; Two-dimensional code: Data Matrix,QR Code | ||||||
| Cooling system | Built-in air cooling | ||||||
| Working temperature | 0-40℃ | ||||||
| Ambient relative humidity | 30-85h(No condensation) | ||||||
| Voltage | 90v-240V | ||||||
| Maximum power consumption | 20W:120W | ||||||
| Machine net weight | 17.6kg | ||||||
| Machine dimensions | 512550326mm | ||||||
Integrated Fiber Laser Marking Machine Feactures
1. All-in-One Compact & Space-Saving Design
Adopts integrated molding structure, with a small footprint (only 0.3㎡), lightweight and portable, easy to place on any standard desktop without occupying too much workspace. The fully enclosed optical path design is dustproof, shockproof and anti-light leakage, protecting internal core components and ensuring safe operation for users; no messy external wires or accessories, keeping the work area tidy and efficient.
2. Ultra-High Precision & High-Speed Marking
Equipped with a high-quality fiber laser source, the laser beam is delicate and stable, with a minimum marking line width of 0.01mm-0.04mm, achieving micron-level precise engraving. It can clearly mark tiny characters, QR codes, serial numbers, logos and complex patterns, with sharp edges and no burrs. The maximum marking speed reaches 12000mm/s, which is 3-5 times more efficient than traditional marking equipment, greatly improving batch processing efficiency without sacrificing marking quality.
3. Zero Consumables & Maintenance-Free
The fiber laser source has a service life of up to 100,000 hours, no need to replace laser tubes or lenses, and no consumables such as ink, paint or chemicals are required during use, greatly reducing operating costs. Adopts efficient air cooling system, no need for water cooling equipment, simple daily maintenance, only regular dust cleaning is needed, saving time and labor costs for enterprises and individual users.
4. Wide Compatibility & Easy Operation
Compatible with DXF, PLT, BMP, AI and other vector and image file formats, supporting TTF fonts, dot matrix fonts and custom fonts, meeting diverse design needs. The equipped intelligent control software has a user-friendly interface, simple operation, easy to learn and use, even beginners can quickly master it. It supports red light preview and precise positioning, avoiding marking errors and improving operation accuracy.
5. Stable Performance & Energy Saving
The whole machine runs stably with low noise, and the power consumption is only about 500W, which is energy-saving and environmentally friendly. It can work continuously for a long time, with strong adaptability to the working environment, and can maintain stable marking effects in different temperature and humidity conditions, suitable for long-term small and medium batch production.
Application Scope
Metal Materials
Widely used for marking and engraving on stainless steel, aluminum, copper, iron, titanium alloy, galvanized sheet and other metal products, such as hardware tools, auto parts, electronic components, kitchenware, jewelry, metal nameplates, etc.
Partial Non-Metal Materials
Suitable for marking on engineering plastics, bakelite, coated metal, ABS and other hard non-metal materials, applied to electronic appliances, communication equipment, plastic accessories and other products.
Application Scenarios
Product identification: Logo, brand name, production date, batch number, QR code anti-counterfeiting tracing;
Personalized customization: Jewelry engraving, gift customization, metal crafts, phone case engraving;
Industrial processing: Electronic component marking, auto parts marking, hardware product permanent marking;
Small batch production: Workshop processing, laboratory sample making, studio personalized customization.
