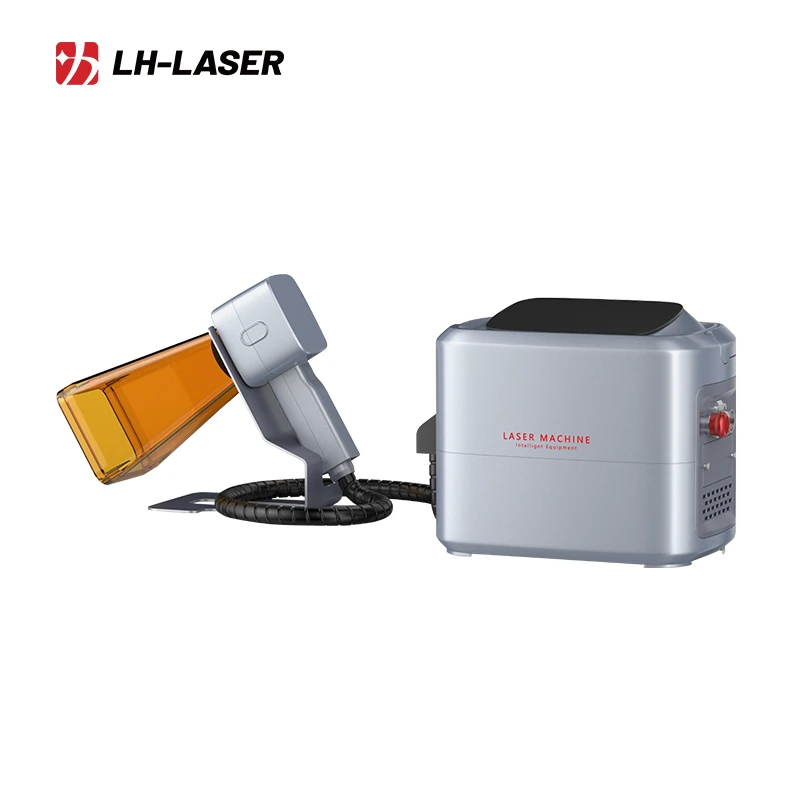

20W 30W Mini handheld laser marking machine

20W 30W Mini handheld laser marking machine
Details:
This Type 20W 30W 50W handheld marking machine is a portable marking device that uses physical impact or laser technology to engrave permanent identifiers—such as text, numbers, patterns, serial numbers, and QR codes—onto the surfaces of various materials. It is highly regarded for its flexibility, ease of operation, and broad applicability.
Send Inquiry
Description
Send Inquiry

                                            20W 30W 50W Small Mini Handheld Laser Marking Machine,laser Engraving Machine



Handheld laser marking machine Products introduction

A handheld marking machine is a portable marking device that uses physical impact or laser technology to engrave permanent identifiers-such as text, numbers, patterns, serial numbers, and QR codes-onto the surfaces of various materials. It is highly regarded for its flexibility, ease of operation, and broad applicability.

I. Key Features
Portability and Flexibility: Compact and lightweight, it can be easily transported to work sites, warehouses, or production lines to mark large or installed workpieces, overcoming the limitations of large stationary marking machines.

User-Friendly Operation: Typically equipped with intuitive software or a mobile app, it connects via Bluetooth or Wi-Fi, allowing users to effortlessly edit marking content and send it to the device.

Permanent Markings: Engravings are made directly onto the material surface, offering wear resistance, corrosion resistance, and durability, meeting the stringent requirements of industrial traceability and quality management.

Wide Material Compatibility: Suitable for various metals (such as steel, aluminum, and copper) and certain non-metallic materials (including plastics, wood, and coated surfaces).

Cost-Effectiveness: The equipment itself requires a relatively low investment and does not involve complex installation or a fixed working environment.

handheld samll laser marking machine 1

metal fiber laser marking2

mini fibre laser marking machine5







mini laser marking machine for metal3



Products parameter

custom laser marking systems 4

Brand:LIHE Laser

Model:LH-DM-FL-20W

Laser power

20W/30W/50W optional

Marking Range

110x110mm,150x150mm,175x175mm optional

Marking Type

Dot-Matrix and Vector

Line width

0.03mm

Repeat location accuracy

0.01mm

Location mode

IR locating, focusing

Control System

8-inch touch screen and Android system

File format

BMP,DXF,HPGL,JPEG,PLT

Barcode pattern

CODE39,CODE128,CODE126,QR

Power source

AC220V or Li-battery optional

Gross Power

≤250W

Temperature range of working

0-40°

Machine weight

4.5-6kg|AC220V;5.5-7kg|Li-battery
